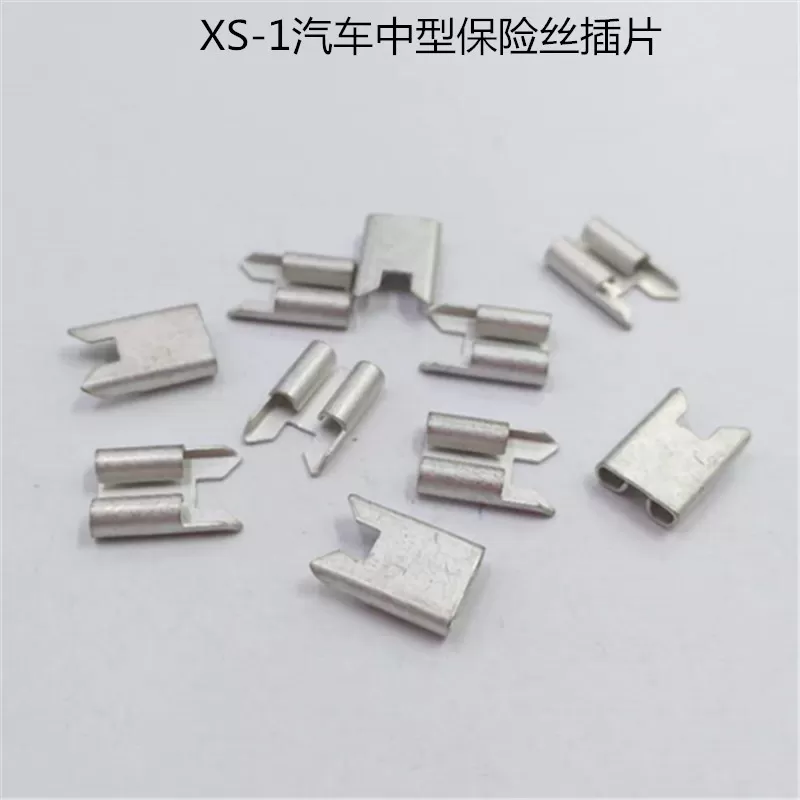

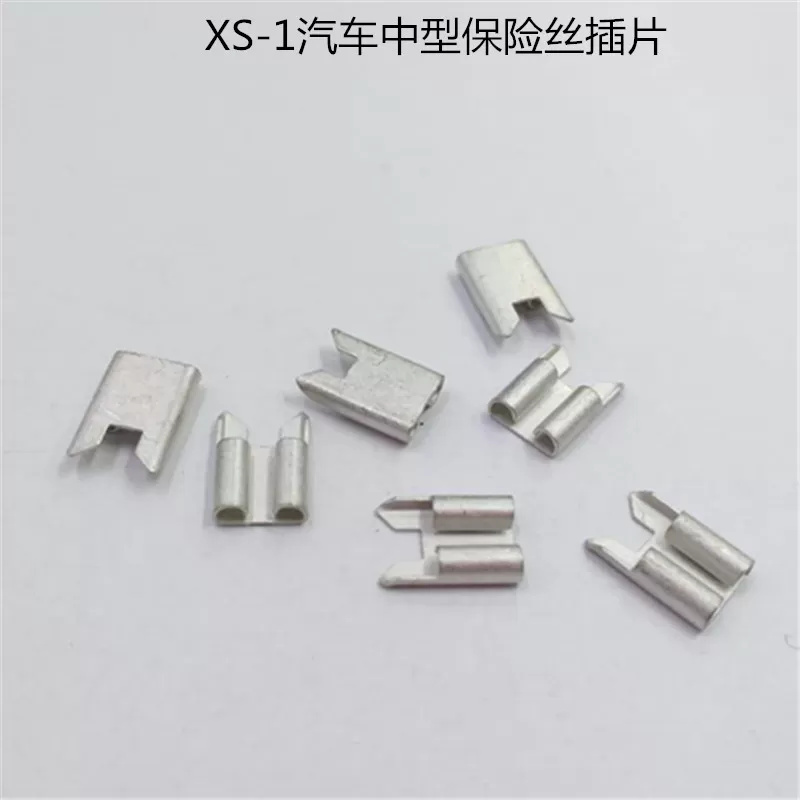

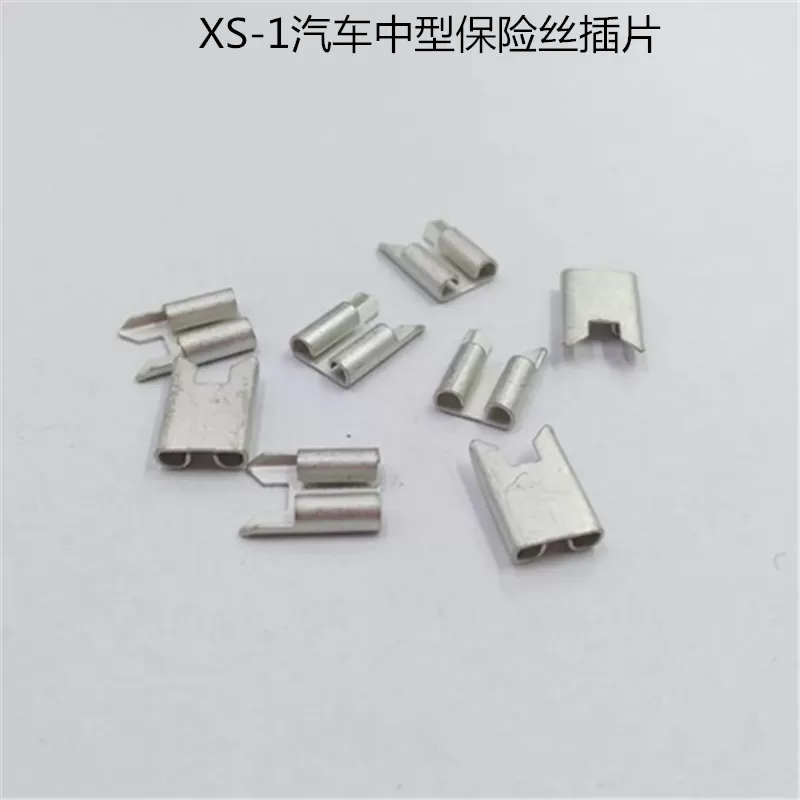

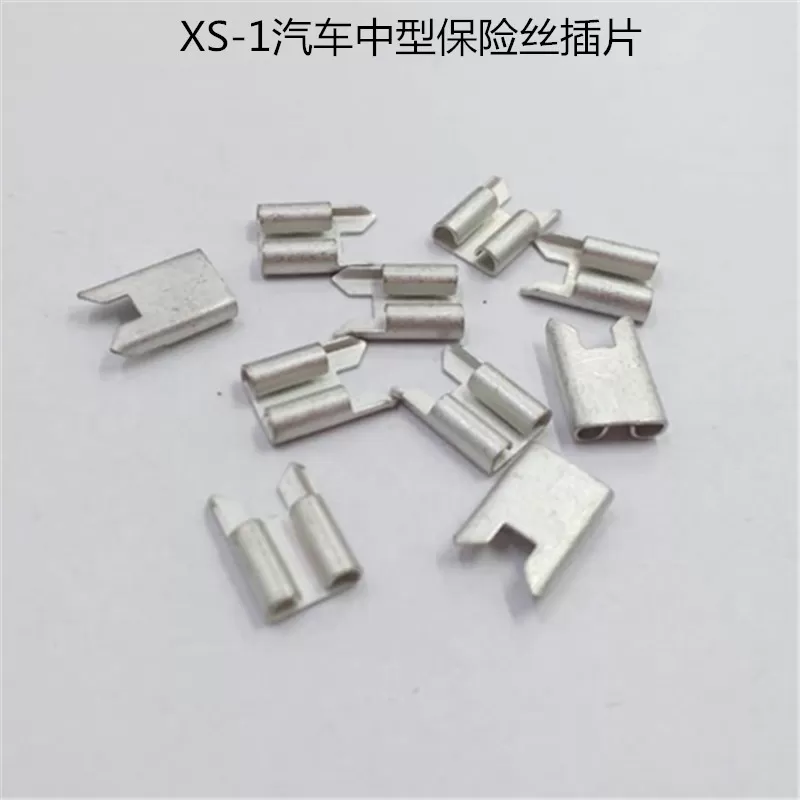

XS-1 medium size car fuse clip

classification Auto Fuse Clips XS-1 medium size car fuse clip

XS-1 medium size automotive plug, PCB board fuse clip, plug-in fuse, medium fuse terminal

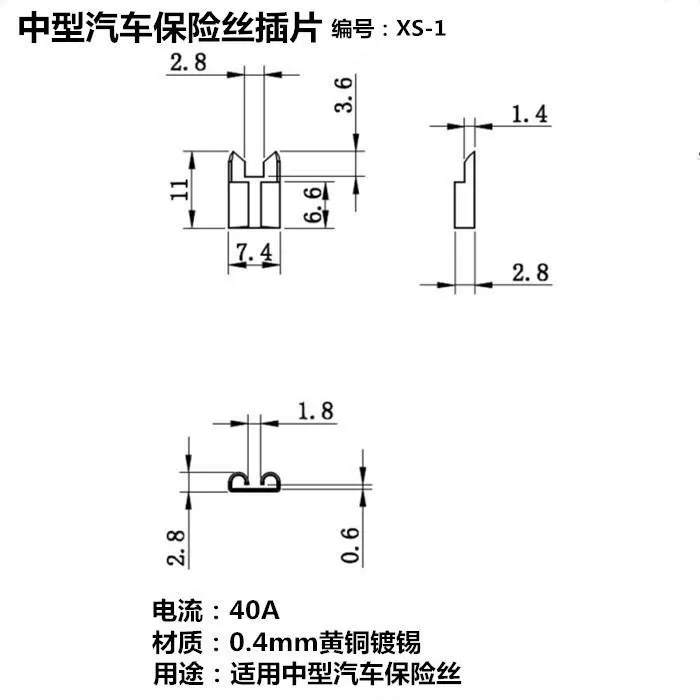

Length * Width * Height（mm）	117.42.8mm
Weld leg distance/spacing	5*7.2mm
Screw hole	/
current	40A
Torque/screw tightening torque/torque	/
Single weight G	0.5g
Foot height	3.6mm
Foot width	2.3mm
Substrate height	7.4mm
material	0.4mm environmentally friendly brass tin plating

Quick quotation

What is a terminal block?

Terminal blocks are accessory products used to achieve electrical connections and are typically classified as connectors in industry. Terminal blocks are usually composed of metal sheets enclosed in insulating plastic, with holes at both ends for inserting wires and fixing them in place with screws and other fasteners. The design of terminal blocks makes it convenient and fast to connect and disconnect wires, without the need for welding or winding. Terminal blocks are suitable for the interconnection of a large number of wires, and are particularly common in the power industry. For example, in terminal blocks and terminal boxes, various types of terminal blocks can be seen, including single-layer and double-layer, current and voltage, ordinary and breakable. In addition, to ensure reliable contact and safe passage of sufficient current, wiring terminals usually have a certain crimping area. With the development of industrial automation and electronics, the range and types of terminal blocks are constantly increasing. Learn more about Auto Fuse Clips product.

Integrated production process

1. Material selection: Firstly, based on the actual usage environment, current load, and reliability of wiring of the product, select suitable conductor materials to ensure their quality meets the requirements. 2. Processing: The manufacturing methods include stamping, injection molding, and casting. 3. Stamping and injection molding: By placing metal sheets on a punching machine and using a mold for pressing and cold stamping, the shape of the terminal block is formed. 4. Surface treatment: Common methods include acid washing, alkaline washing or mechanical brushing, gold plating, silver plating, tin plating, etc. 5. Quality inspection and testing: tensile testing, conductivity testing, insulation performance testing, etc. of welding points to ensure that the product meets standards and requirements.

Choose our strengths

1

One stop service for design, manufacturing, and stamping

We mainly produce fuse clips, fuse holders, fuse boxes, PCB welding terminals, various plug-in terminals, spring clips, and copper ring copper rings, and provide one-stop services for hardware mold design, manufacturing, and stamping to the outside world.
2

A comprehensive management system

Having a sound management system and quality assurance system, various functional departments work together and always adhere to the quality policy of "survival through quality, development through reputation" to meet the needs of customers.
3

Strong production capacity

Since its establishment, the company has been constantly exploring and striving, adhering to the concept of "honest service, quality assurance". Having development advantages, design concepts, strong production capabilities, and a quality assurance system.
4

Comprehensive and worry free after-sales service

The technical service team provides suitable product solutions based on customer needs, provides professional technical guidance, and eliminates any worries for you. We provide you with professional pre-sales, sales, and after-sales comprehensive support, making customers feel at ease.
5

Packaging process

Finally, we have reached the final step. After the production of the product is completed, we usually package the exported goods to avoid damage during long-distance transportation and seawater erosion during sea transportation.

Request information or quotation

View all types of products

What would you like to know about choosing Xinshuo Electronic Hardware and Plastic Factory

Widely used in power, electronics, communications and other industries.

Common materials include brass, iron, red copper, phosphor copper, etc.

It is an electrical connection component used to connect wires.

High-quality environmentally friendly brass has excellent conductivity.

Welding type, plug-in type, fence type, etc.

Corrosion resistance and salt spray resistance for 24 hours.

The product size is strictly controlled according to the standard for easy installation.

The surface is tin-plated for secure welding and easy tinning.

We have stable and cooperative freight forwarders. If you need, we can provide shipping services in various ways, including FOB, CIF, DDP, etc. The shipping quotation will be separated from the product quotation for your reference. Of course, if you have your own freight forwarder or if you have spare containers in other cities in China, this is also possible. We will do our best to assist you in transporting the products to your warehouse in good condition.

Of course, if you come to China, we will arrange your itinerary and a driver to pick you up. If it's inconvenient for you to come to China, we can also inspect the factory online through ZOOM.
